Flux Cored Arc Welding  (FCAW-s & FCAW-g)
              (self-shielded & gas shielded flux core)

           a.k.a. flux core & “dual shield”

  • Equipment used, polarity, flux agents

  • Self-shielded vs. gas shielded flux core

  • Process variables, differing techniques

  • Advantages & limitations of each

Minimum time requirement:  2 hours.  (20% classroom, 80% shop)

Application activities in the classroom as well as the shop.

FCAW diagram1.png

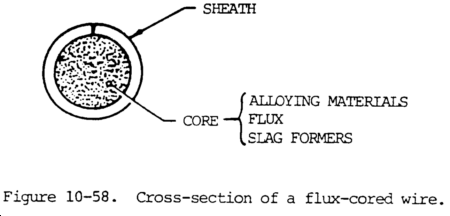

FC wire x-section.gif
Screen Shot 2019-02-06 at 12.44.33 PM.pn

Example of a page included in the Student/Reference Manual

7 FCAW (dragged).jpg
Screen Shot 2019-02-08 at 11.37.03 AM.pn
